How to connect the drone protection module to the power source
Author:
Some of our customers have a question about connecting the power of the anti-drone signal jamming module, because its power wire is not black red two wires like normal electronic product, and it is 3 wires, so some customers are a little confused. Now let's see how to resolve this issue.

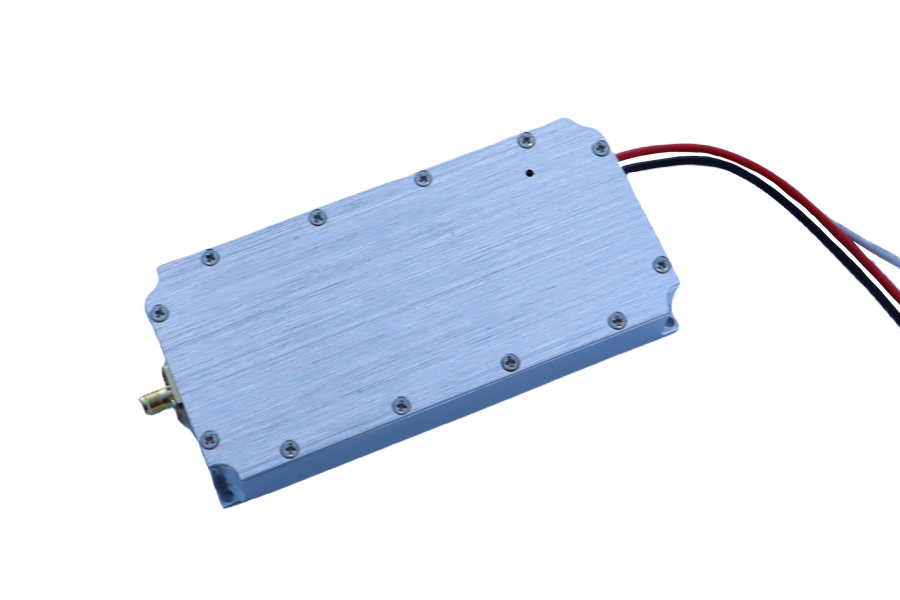

(1) Let's take a look at the module wires:
* Red wire: power supply
* Black wire:-power supply
* White wire: power supply/or one module power switch = turn on control
(If the customer does not need the power on control, we can only assemble the drone jamming module with black red wire, and the customer should tell us before production.)
2) Two types of connection are proposed:
A:
* White wire Red wire: wrapped together, then connected to "" power
* Black wire: connected to " - " power supply
B:
* Red wire: connected to "" power
* Black wire: connected to " - " power supply
* White wire: connected to one silencer module on/off control = turn on control
Company Shenzhen Longyuan Electronics Co., Ltd. Specializes in deaf signal and deaf modulation manufacturing; So do the entourage of antennas, radiators and blocks queries. Our basic production-module pomah signal anti-drone, from 100 MHz to 6 GCC, power from 5 W to 300 W, good fire in zapros.
