7 channle Directional plate antenna jammer drone Fixed model

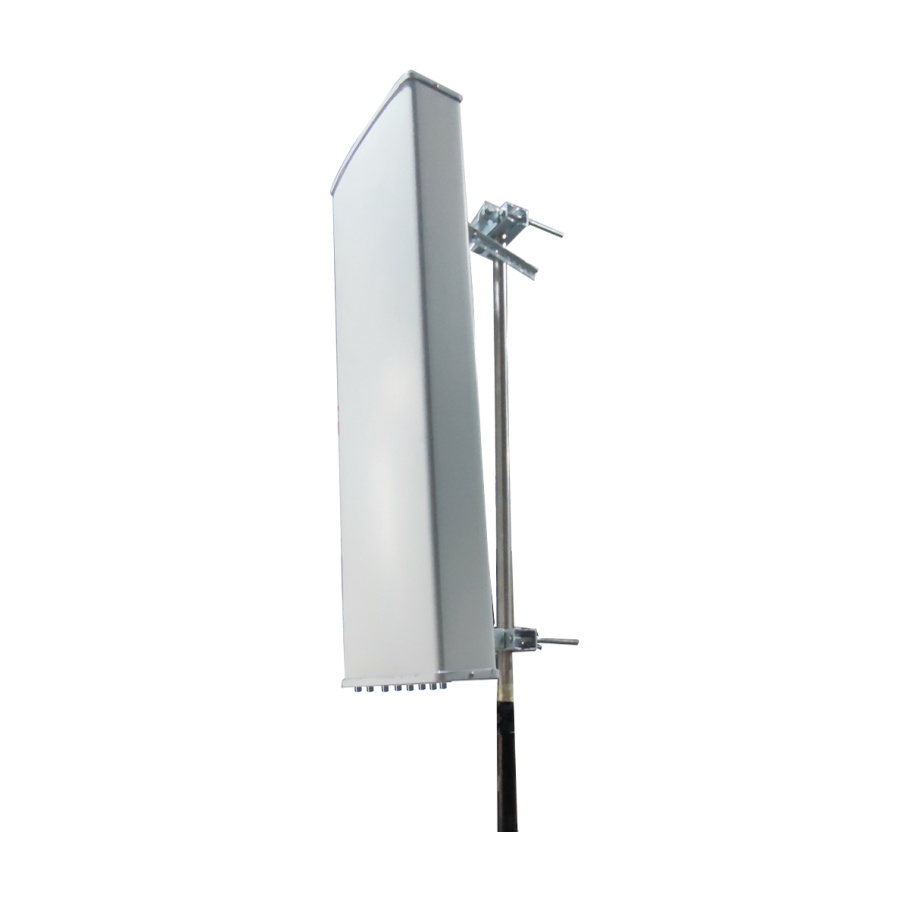

Drone Countermeasures Seven-Port Directional Plate Antenna

编号：

Electrical Specifications

Mechanical Specifications

Dimensionsmm(Height/Width/Depth)	1200416136mm
Packing size(mm)	1400480255mm
Antenna weight(kg)	20±0.3KG
Rated Wind Velocity（m/s)	36.9m/s
Operational Humidity(％)	10-95
Radome Color	gray
Radome material	UPVC
Operating temperature(ºC)	-30～65º
Installution Method	Holding bar installation
Mounting hardware(mm)	￠35～￠90
Mechanical tilt(º)	0-15º

Horizontal Orientation Diagram H	Vertical plane direction diagram V

Antenna Installation Instructions

Antenna Installation Schematic
Installation Instructions	1:Take out the antenna and accessories, and prepare the tools (wrench). 2:Install the antenna with clamping screw and serrated clamping fittings on the holding rod of φ35~90m, make the antenna and the holding rod parallel, and tighten the screws on the upper and lower clamping screws after adjusting the height of the antenna. The upper clamping code is completely pressed, adjust the height of the antenna installation and then tighten the nut on the upper and lower clamping code screws. 3:Adjust the antenna installation downward tilt angle, tighten the nuts on the screws with ★ in the figure. 4:According to the polarization label at the antenna connector, connect the corresponding feeder cable to the cable connector of the antenna, and wrap the waterproof glue to complete the installation.
caveat	1:The installation of the antenna must be installed by professional personnel. 2:The height of the antenna can be based on the actual installation environment, no tall buildings or large bodies nearby, no obstruction, and so on.
