8-channel vehicle-mounted drone countermeasure equipment
8-channel vehicle-mounted drone countermeasure equipment
The equipment for countering vehicle-mounted FPV drones.
编号 :
联系我们
- Product Description
- Table
- Map
-
As the prevalence of drones increases, the need for effective countermeasures has never been more critical. Anti-drone technology encompasses a range of solutions designed to detect, disrupt, and neutralize potential threats posed by unmanned aerial vehicles (UAVs). Key components include UAV detection systems and anti-drone detection systems that help identify unauthorized drones in real-time.
One prominent solution is the anti-drone jammer gun, which can disable drone signals to prevent malicious activity. Additionally, advanced technologies such as anti UAV RF modules and counter FPV modules enhance detection capabilities, allowing users to respond swiftly to threats. Shield AI drones are also emerging, offering proactive defense mechanisms against unauthorized UAVs.

The market for drone detection equipment continues to expand, with devices like anti-drone guns and counter drone devices gaining traction among security professionals. As more organizations seek robust anti-drone solutions, the development of anti-drone weapon systems has become paramount, providing an effective means to protect sensitive areas from drone incursions. Overall, the evolution of anti-drone tech demonstrates a commitment to maintaining safety in an increasingly aerial world.

product feature
1. Enhanced with a robust magnetic adsorption mechanism, ensuring convenient installation in vehicles.
2. Equipped with an optional built-in power/battery system for added versatility.
3. Features a custom antenna design that effectively mitigates interference issues.
4. Seamlessly integrates the host antenna for enhanced functionality and ease of use.
5. The operation of the wired handle.
6. Offers customizable frequency band options (4-6-8 channels) and power output levels (30-50W) available for additional fees.
7. Incorporates single switch technology to efficiently regulate power output as desired.
8. Designed with waterproof capabilities to withstand various environmental conditions.

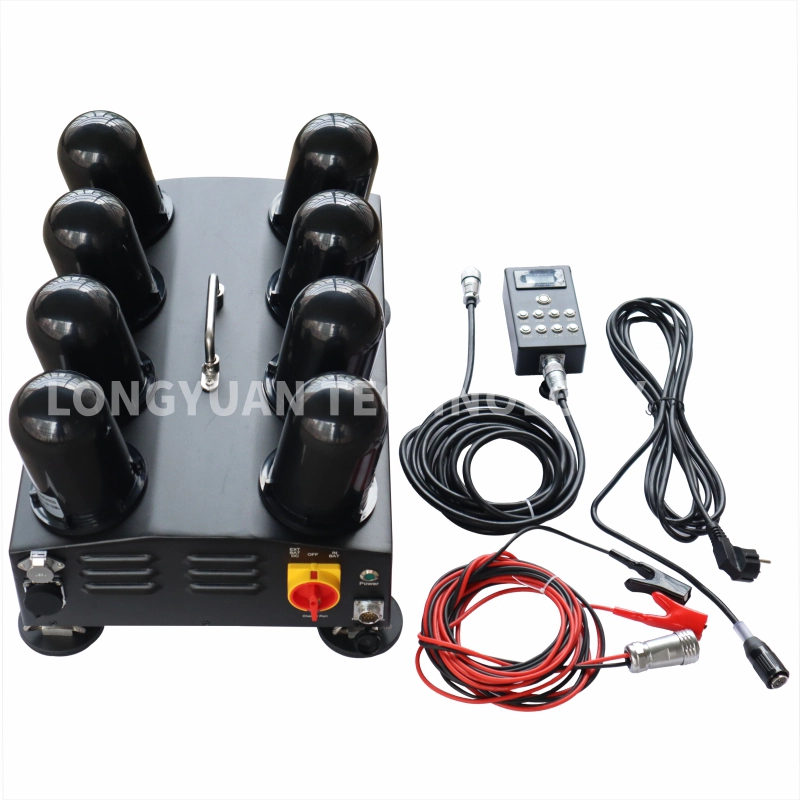

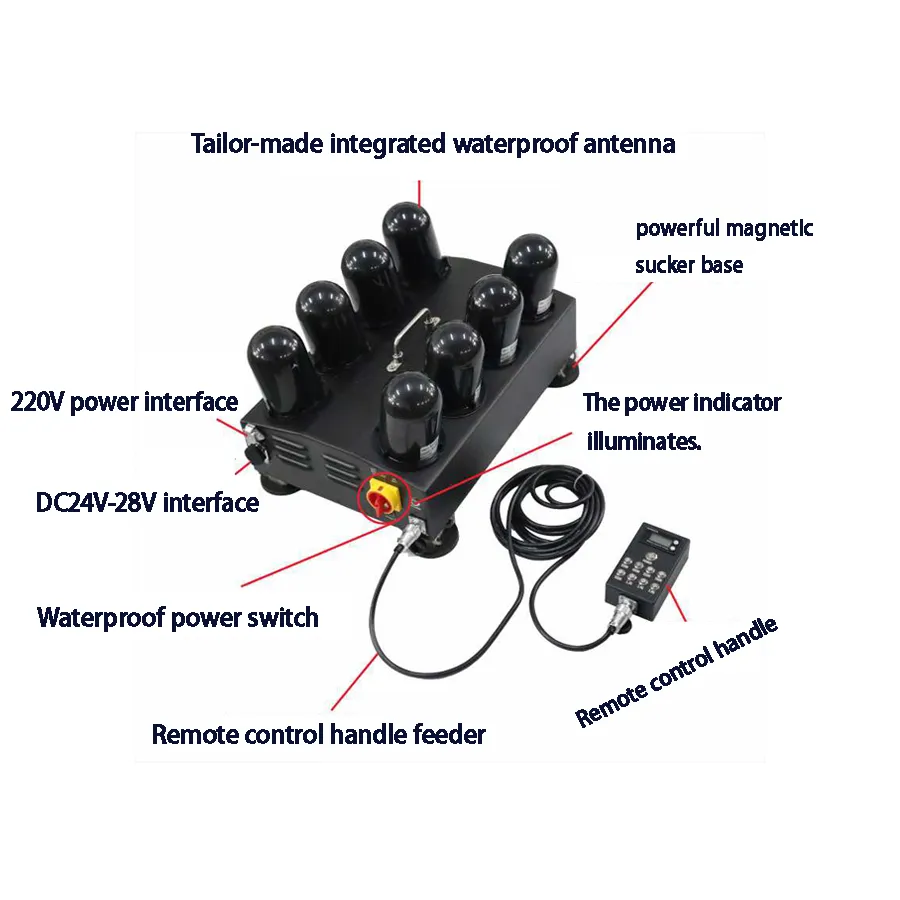

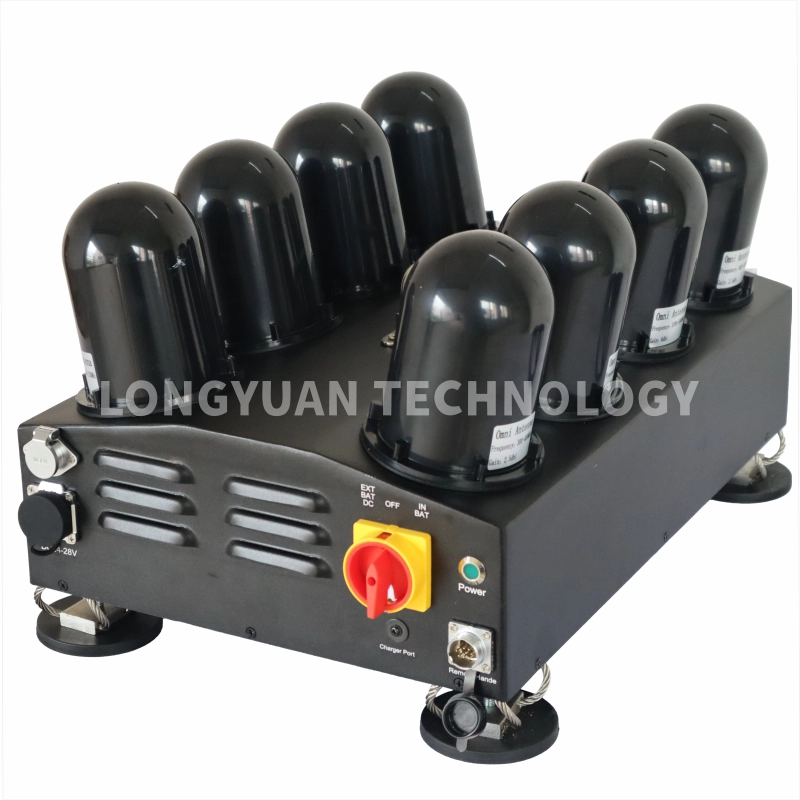

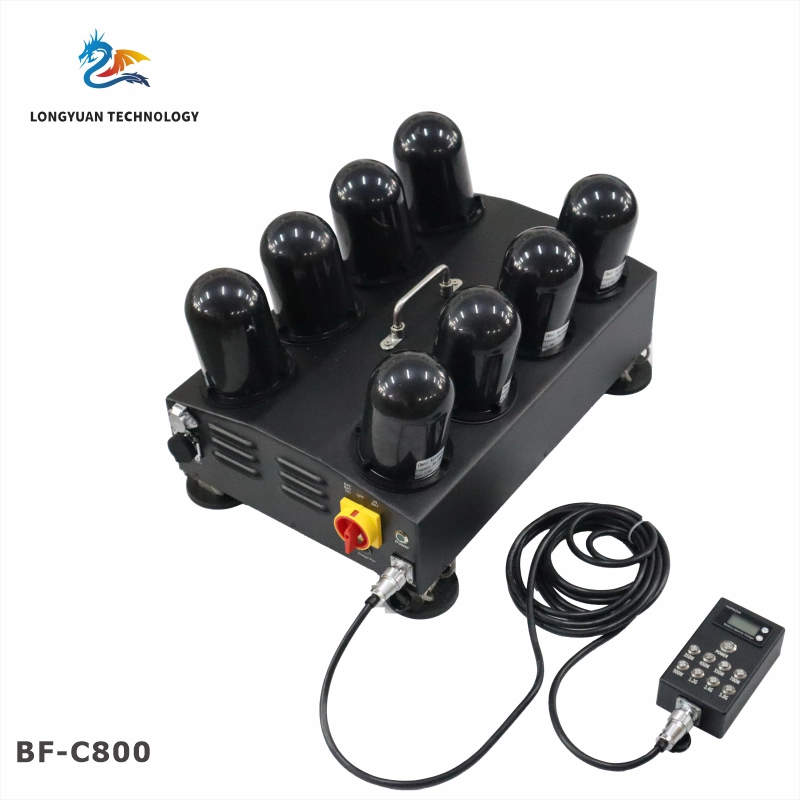

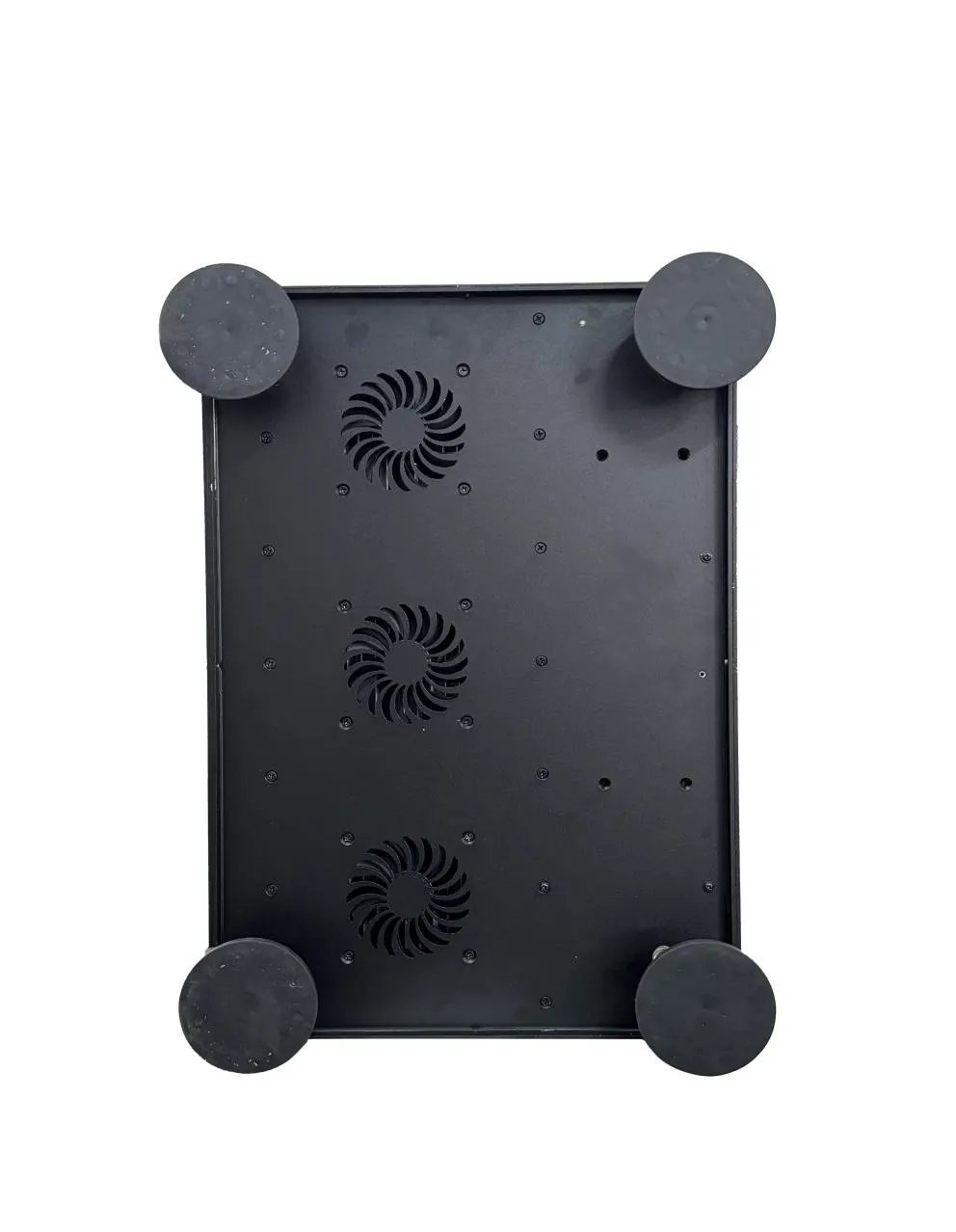

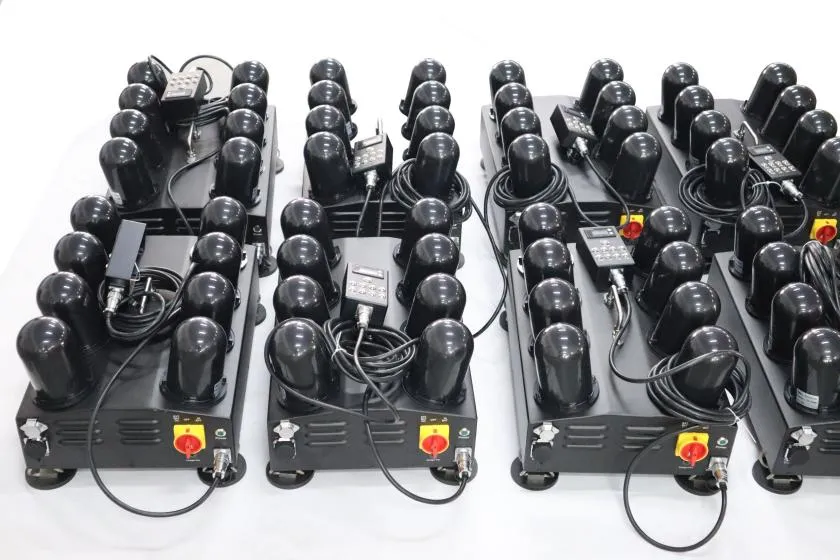

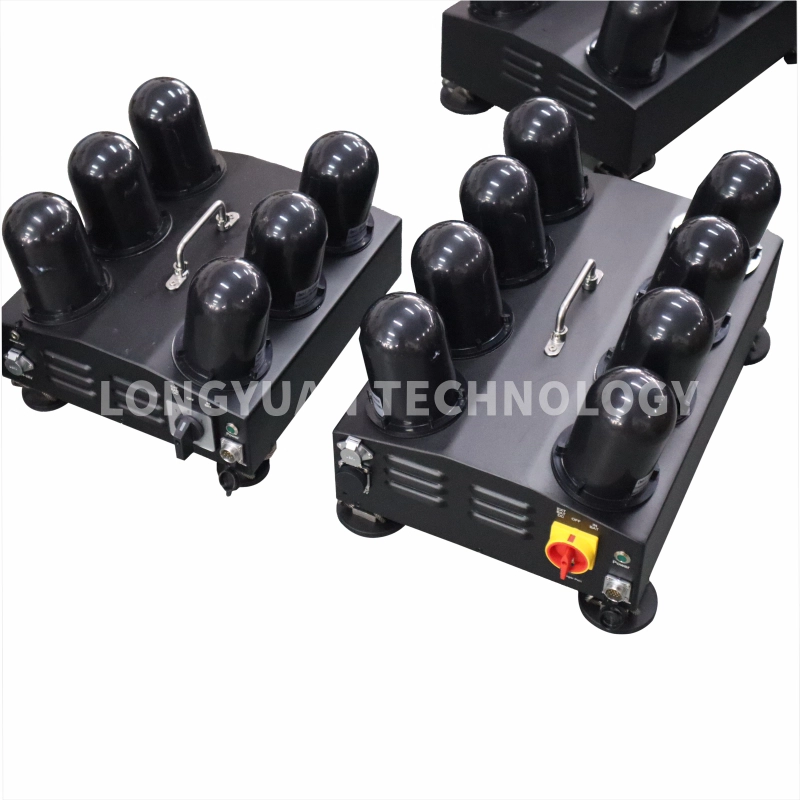

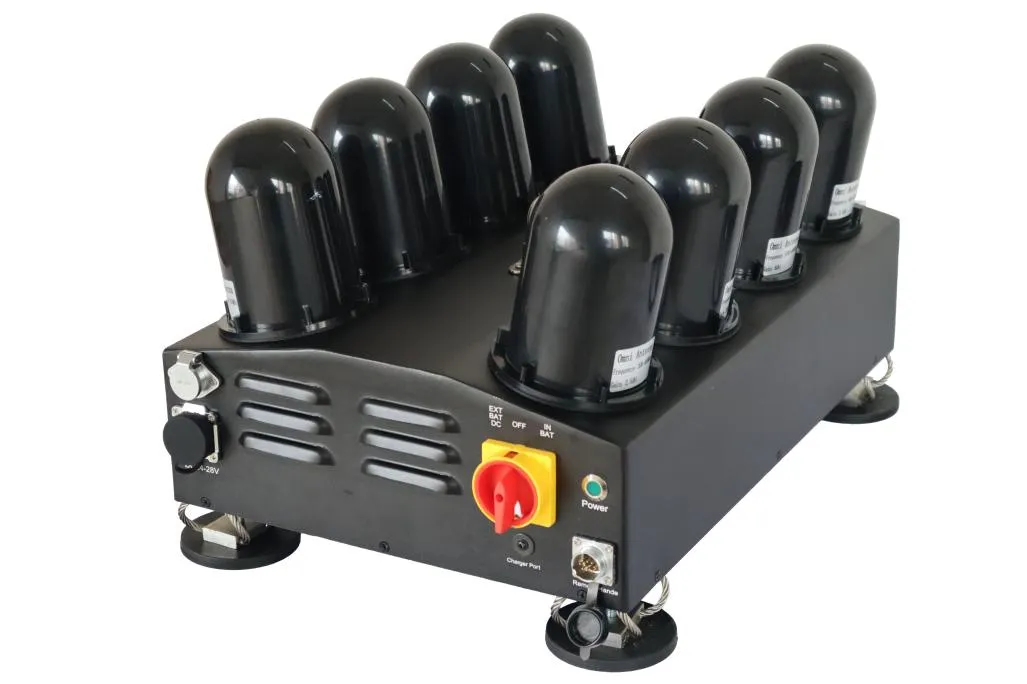

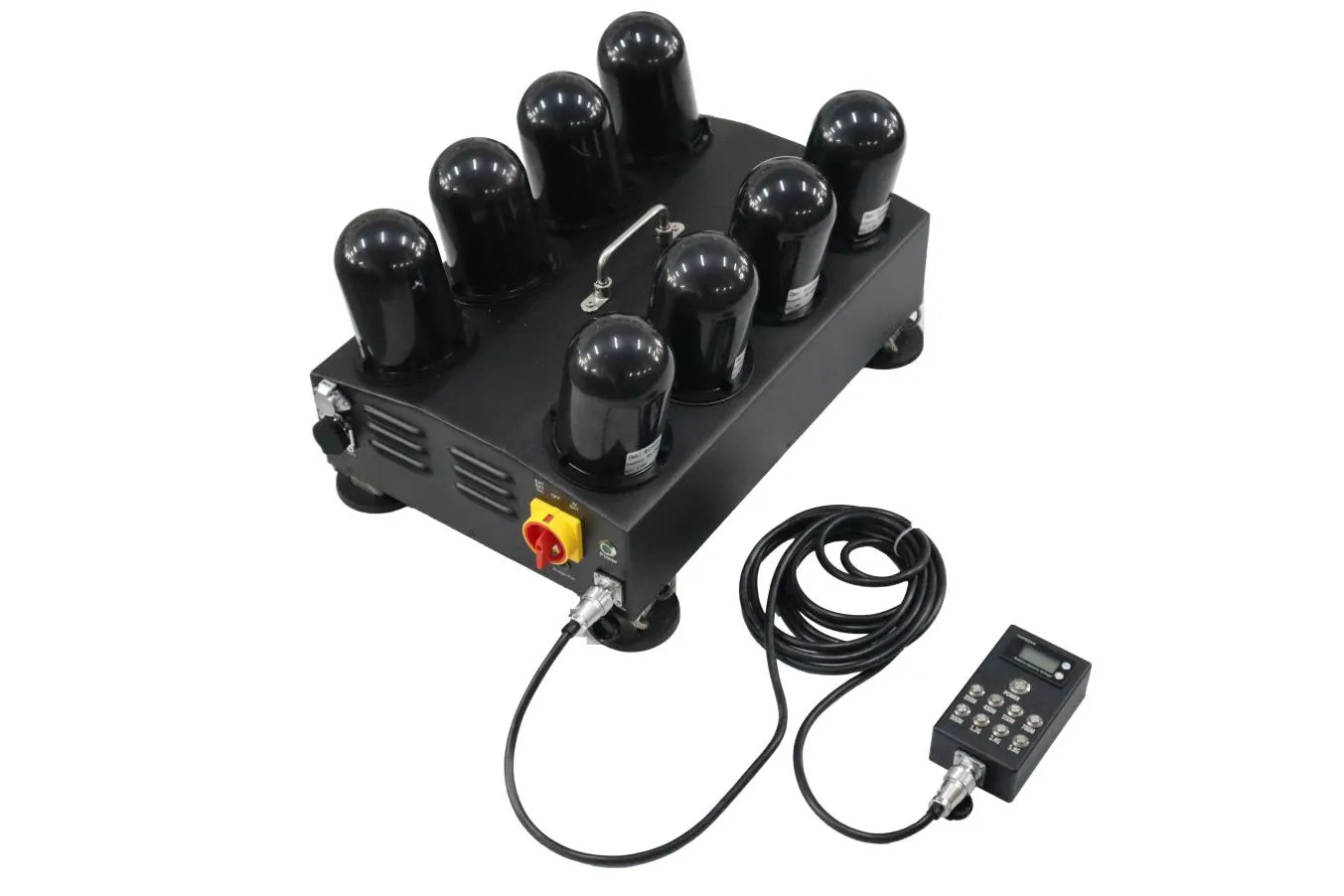

Product picture


The frequency and power can be customized Please refer to the following information.
number
operating frequency
output power
antenna gain
1
300-400MHz
50W
2.5dbi
2
400-500MHz
2.5dbi
3
500-600MHz
50W
3dbi
4
600-800MHz
50W
3dbi
5
800-1050MHz
3dbi
6
1150-1280MHz
50W
3.5dbi
7
2400-2500MHz
50W
5dbi
5725-5850MHz
50W
6dbi
Power supply method: 1. Built-in power supply 220V or built-in battery (customers can choose according to their own situation, with a price difference.) 2. External battery interface 24-28V
Host weight: 18.2kg Host size: 52.5·14·36cm Packing size: 67·46·42cm (cardboard box packaging) Packing weight: 22.5kg
Countermeasures Range: 300-800 meters (depending on the drone model and the drone's flight altitude)
Product List: Integrated Host + Remote Control Handset + Feedline + Power Cord
Instructions

- Check the equipment before use to ensure it is in good condition and all accessories are present.
- Fully charge the battery before use.
- Connect the remote control handle to the main unit.
- Press the individual or all function buttons to activate the device.
- Turn off the function buttons after use.
Aftersales
No damage caused by human error, warranty for one year on the product.
- Check the equipment before use to ensure it is in good condition and all accessories are present.
