N-end Digital Source anti drone anti FPV Module

Longyuan Technology anti-drone modules mainly interfere with the communication and navigation systems of unmanned aerial vehicles, causing them to lose control or cause them to return, land or hover.

编号：

联系我们

Product Description
Table
Map

Anti UAV technology

In today’s rapidly evolving technological landscape, anti-UAV technology has become increasingly important, especially in the fields of security and defense. Anti-drone systems effectively counter potential threats through various means, such as UAV detection systems and jamming modules. These technologies typically include drone defense systems and anti-drone weapons, such as drone jammer guns and gun-style anti-drone devices. The demand for these solutions in the market is steadily rising, driving innovation and development in anti-drone systems.

As more drones are used for commercial and personal purposes, the market trend for anti-drone technology shows strong growth. RF shield manufacturers are dedicated to developing efficient anti-drone solutions to address security challenges. These systems can not only detect drones in real time but also effectively disrupt their operations through jamming signals, thereby protecting critical infrastructure and public safety. In the future, with further advancements in technology and the application of modular antennas, anti-drone systems will become more flexible and adaptable, serving as the ultimate tools for maintaining security.

Stability performance

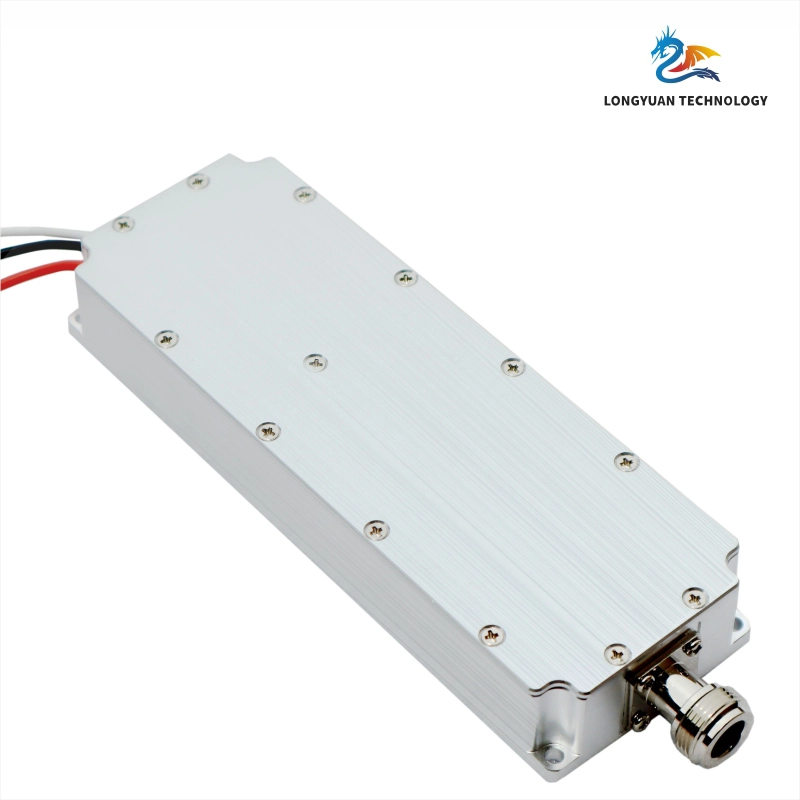

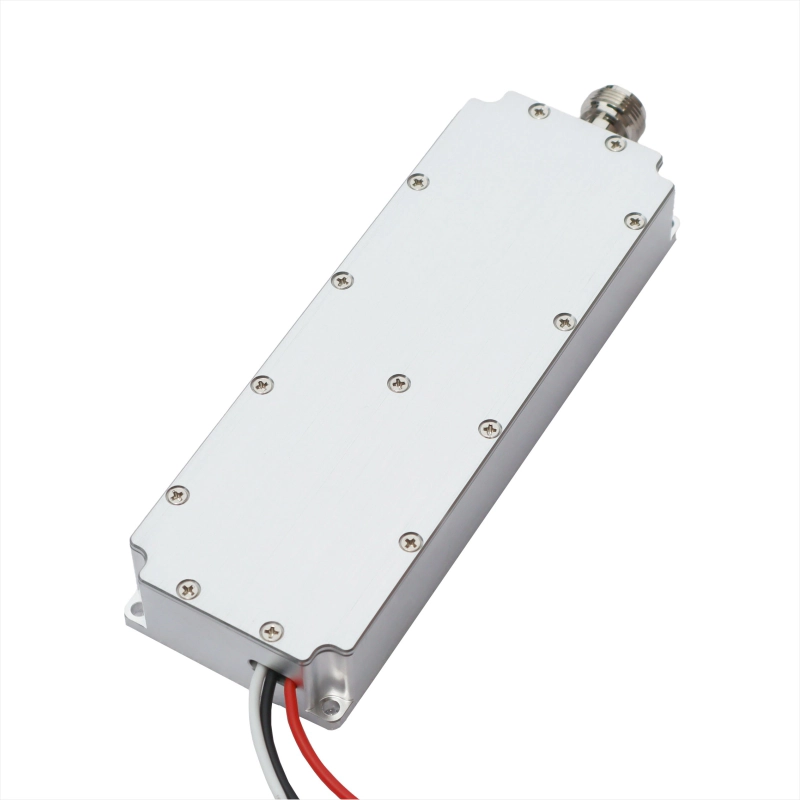

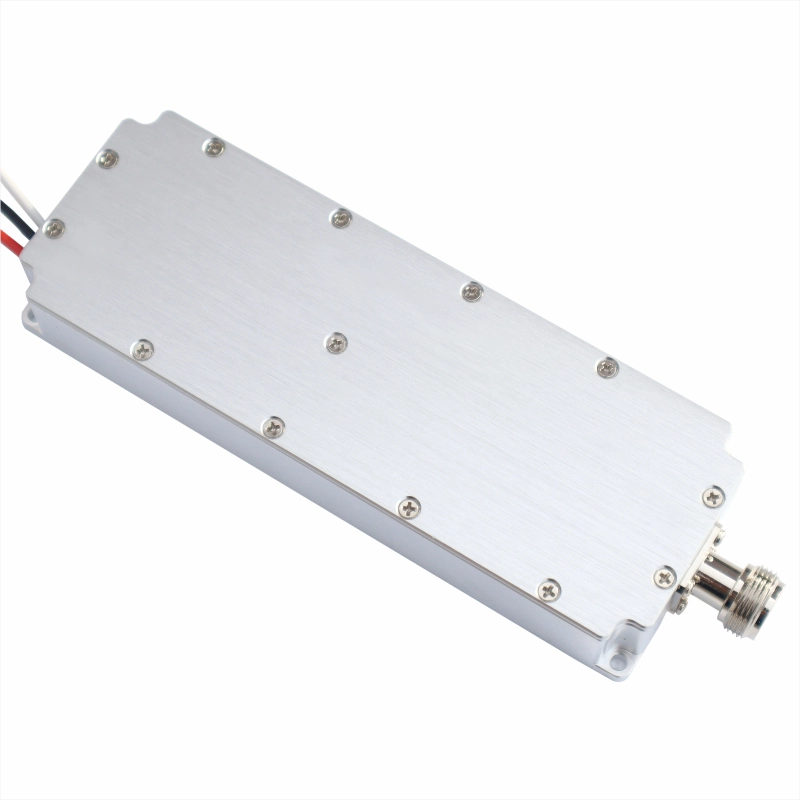

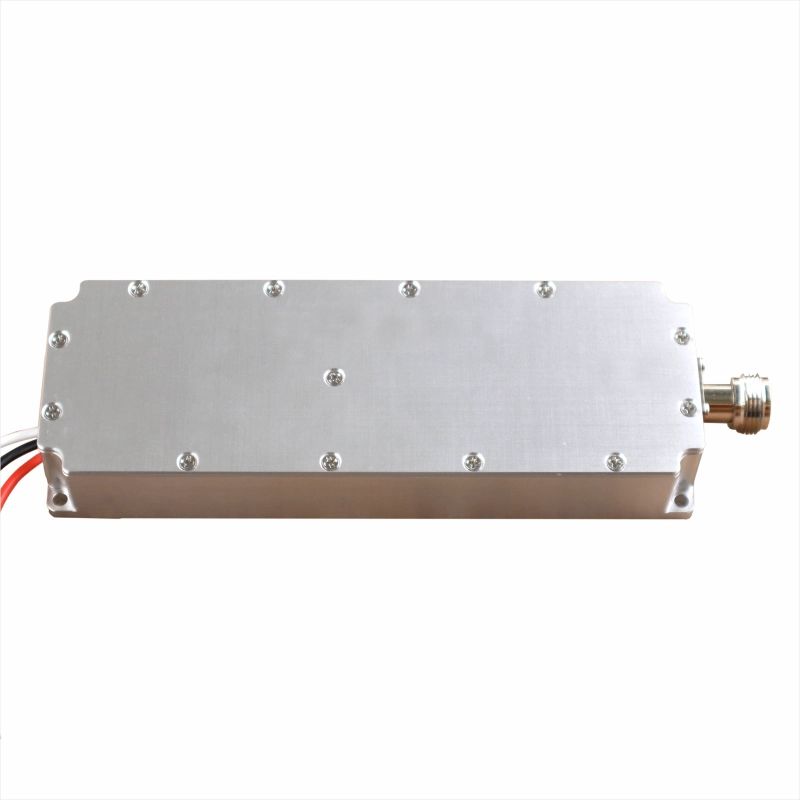

This N-end digital source drone jammer module is a high-quality product developed and manufactured by LongYuan, a professional manufacturer and supplier in China. This N-end digital source drone jammer module has remarkable shielding effect and can be customized with different frequency bands and power.

It can operate normally under various environmental factors (such as temperature changes, voltage fluctuations, etc.) and is less prone to malfunctions or performance degradation.

The power and frequency of each module will be rigorously tested using spectrometers to ensure compliance with the specified requirements.

Frequency	300-350/350-400/400-500/500-600/600-700/700-850/850-950/950-1050/1050-1200/1200-1300/1300-1500MHz
Power	≥50W
Size	1565423.5mm
Weight	0.43KG
voltage	28V
Electric current	8.4A
Output connector	N
Operating temperature	-30~+65℃
Power amplifier efficiency	40%
Output standing wave	≤1.5
On-off control	Enable switch
flatness	±1dB

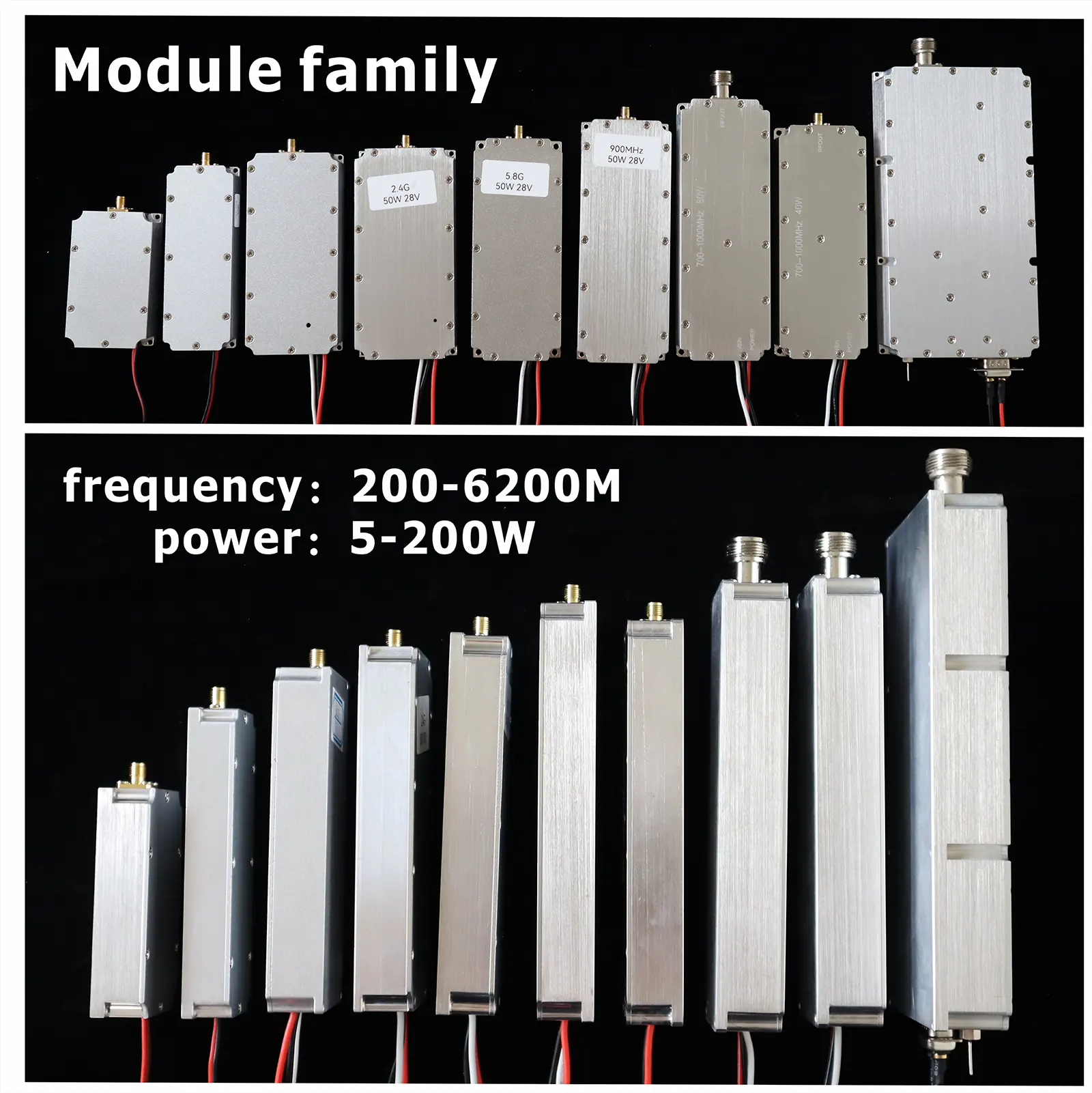

Longyuan Technology drone defense company providedConventional Modules, Circulator Modules, Digital Source Modules, Gallium Nitride Modules，Longyuan Technology's anti-drone module satisfies the 200 - 6200 MHz frequency range output, and the Bandwidth is arbitrarily tuned in the 200 MHz range with precise frequency characteristics.

The specific principle of operation of the anti-UAV module will vary depending on the design and technical characteristics of the product. In addition, different types of UAVs can respond to interference in different ways, so anti-UAV modules often need to adapt and optimize according to the actual situation. In practical application, anti-UAV modules are often used in combination with other anti-UAV technologies and equipment to improve overall resistance.

Product name	5.2G/5.8G ≥30W Portable RF Amplifier Module Specially Designed for Anti-Drone
Stamp	5100MHz-5300MHz/5725MHz-5850MHz or customized frequency
Surface	Aluminum Alloy
Size	12x5.5x1.9cm
Weight	0.21 kg
Ends	NO
OEM	OEM afterward, follow the customer
Packaging	Carton package
MOQ	1 piece
Lead Time	Within 15-30 days after deposit received or irrevocable L/C on site
Sample	Sample charge
Production capacity	100000 pieces per year

The frequency jammer device of each module will be accurately adjusted with professional spectrometers to ensure the lowest error and high accuracy to meet the specific requirements of our professional customers.

100-1000MHz 100W Anti-drone passive Power Amplifier Module
