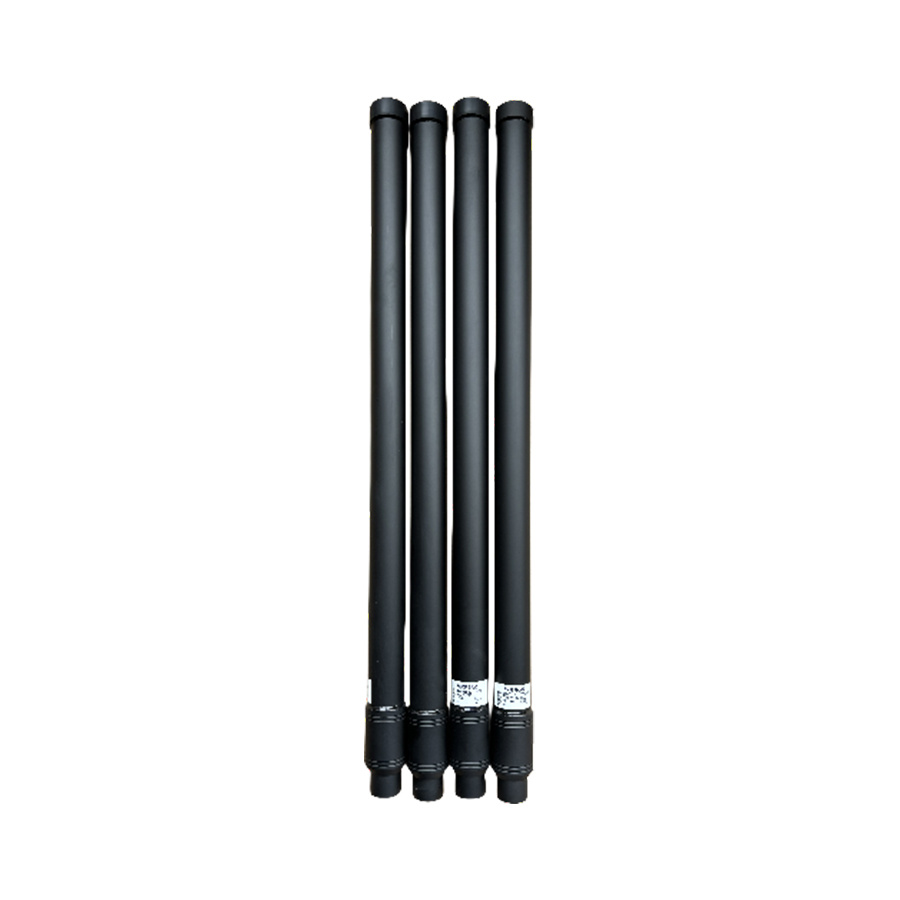

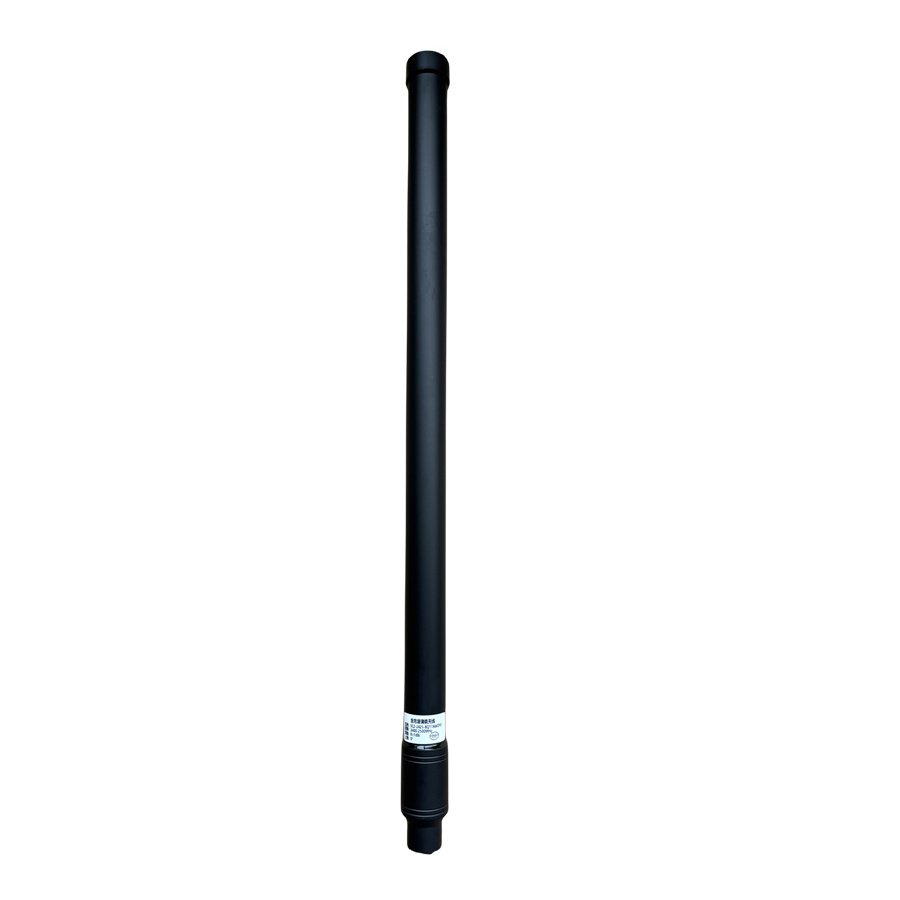

Omnidirectional fiberglass antenna jammer drone
- Product Description
- Table
- Map
-
Electrical Specifications

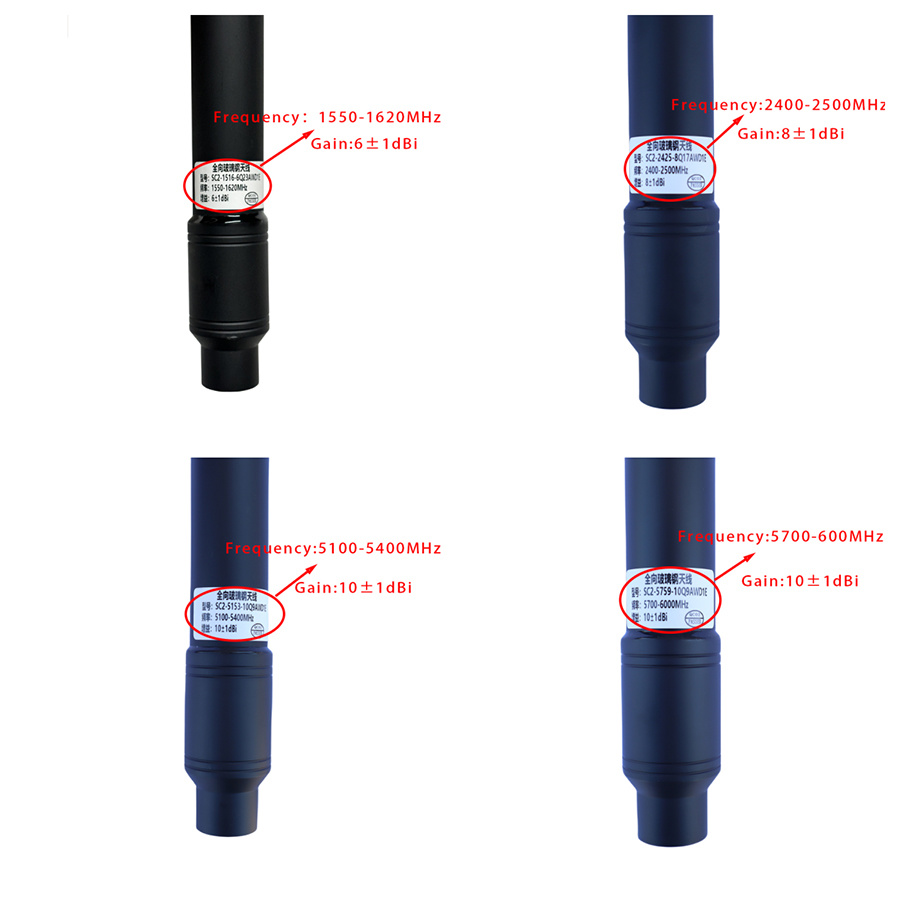

Frequency Range
Custom Gain(dBi)
3-10±1dBi VSWR
≤2.0 Polarization
vertical polarization Horizontal Beamwidth(0º)
360° Vertical Beamwidth(0º)
55±10° ovality(dB) ±2dB Input Impedance（Ω）
50Ω
Maximum input power(W)
100W
Inpur connector type
N-J (inline) Lightning Protection
DC Ground
Mechanical Specifications

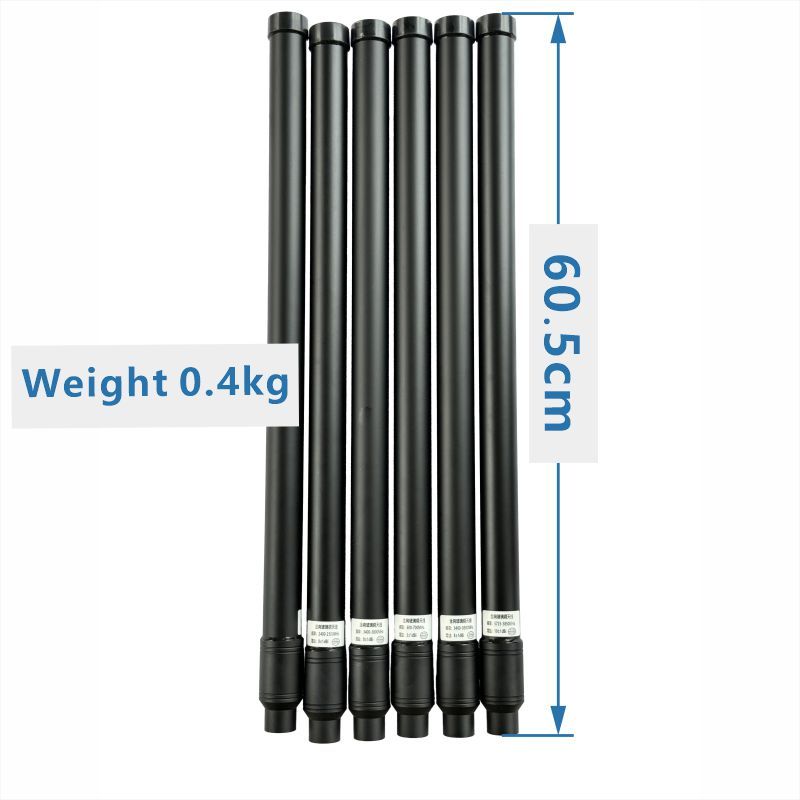

Dimensionsmm(Height/Width/Depth)
φ32*600mm Packing size(mm)
660*300*260mm Antenna weight(kg)
0.49±0.1KG Operational Humidity(％)
10-95 Radome Color
matte black Radome material
fiberglass Operating temperature(ºC)
-30～65º Installution Method
Machine Installation
