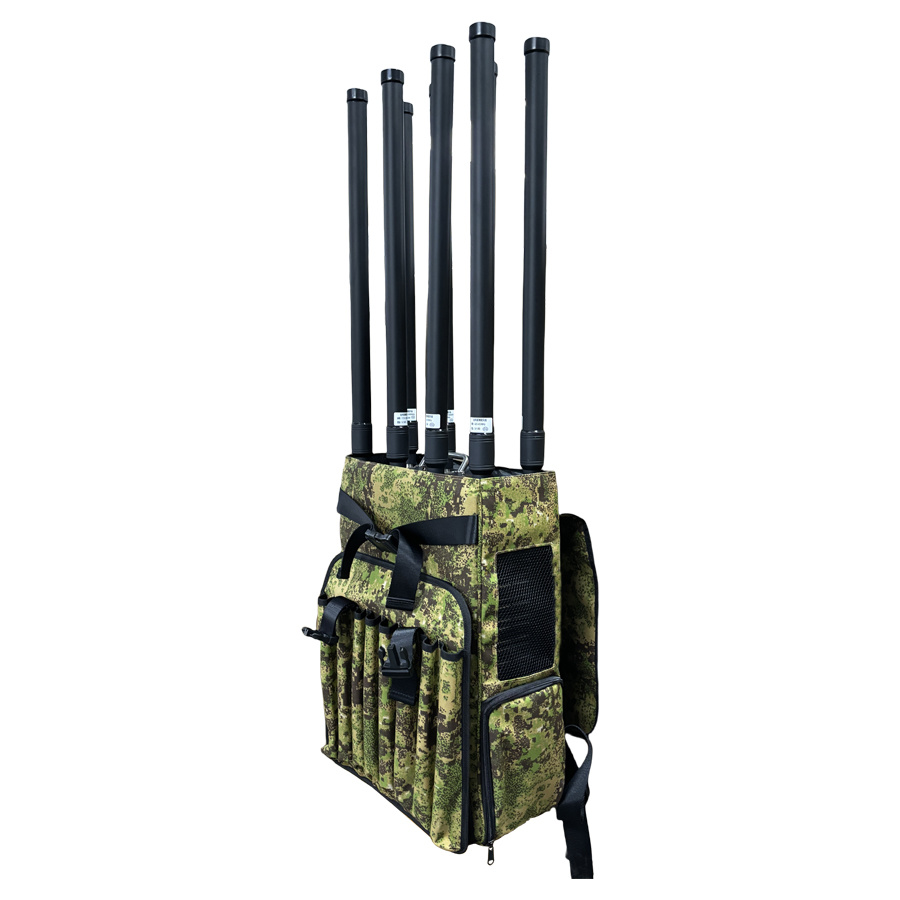

Camouflage Drone Backpack with 8 Jamming Ways

Before turning on, you must install a communication antenna and then turn on the power.

编号：

联系我们

Product Description
Table
Map

With the active development of UAV market, UAV has been widely used in all aspects of public life. Inevitably, the use of UAVs also brings some harm, such as the frequent appearance of black flying UAVs in no-fly zones, the use of UAVs in poisoning, and applications in the field of warfare. This product is mainly used in black flying UAV, in sight, black flying UAV to drive off and force landing. The equipment is customized according to customer requirements, the use of backpack, can be carried for a long time, built-in battery, unlimited use more convenient, while the equipment is equipped with external omnidirectional and built-in plate two antenna modes, to meet different use needs.

1 、 Backpack design, easy to carry, the appearance of the atmosphere, the color of the outer backpack can be customized.
2 、 Battery retracted design, easy to disassemble and transport.
3 、 One switch control, more free operation.

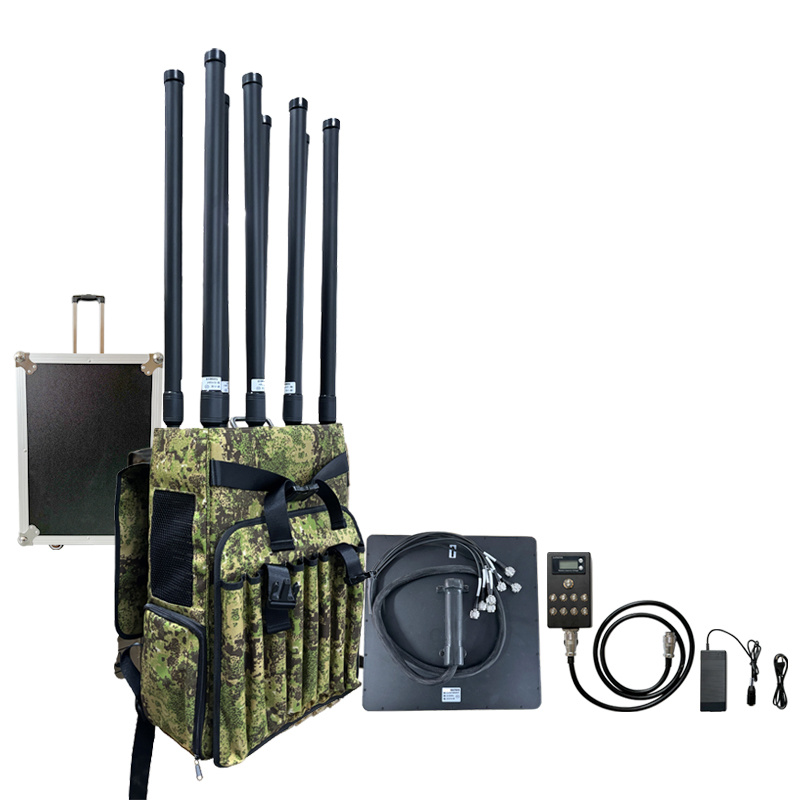

4 、 Support external omnidirectional antenna and manual directional antenna to meet different needs.
5 、 Highly optimized antenna, best counter range.
6 、 Aluminum housing with aluminum cooling unit, better heat dissipation, more stable operation.
7 、 With power display, easy to know how much energy.

Product Specifications

Output End	Working Frequency	Average power output	Channel output power
433M	428-438MHz	50W/47dbm	20dbm/30KHz (min)
900M	860-930MHz	50W/47dbm	20dbm/30KHz (min)
1.2 G	1160-1280MHz	50W/47dbm	20dbm/30KHz (min)
1.4 G	1400-1450MHz	50W/47dbm	20dbm/30KHz (min)
1.5 G	1550-1620MHz	50W/47dbm	20dbm/30KHz (min)
2.4 G	2400-2500MHz	50W/47dbm	20dbm/30KHz (min)
5.2 G	5150-5350MHz	50W/47dbm	20dbm/30KHz (min)
5.8 G	5725-5850MHz	50W/47dbm	20dbm/30KHz (min)
Power supply: AC220V-DC5V Battery capacity: 20A
Package weight: 35 kg Host weight: 15 kg
Package size: 75-45-42 cm

Output End	Working Frequency	Average power output	Channel output power
433M	428-438MHz	50W/47dbm	20dbm/30KHz (min)
900M	860-930MHz	50W/47dbm	20dbm/30KHz (min)
1.2G	1160-1280MHz	50W/47dbm	20dbm/30KHz (min)
1.5G	1550-1620MHz	50W/47dbm	20dbm/30KHz (min)
2.4G	2400-2500MHz	50W/47dbm	20dbm/30KHz (min)
2.4G (Possibility of switching to other frequency ranges)	2400-2500MHz	50W/47dbm	20dbm/30KHz (min)
5.2G	5100-5300MHz	50W/47dbm	20dbm/30KHz (min)
5.8G	5725-5850MHz	50W/47dbm	20dbm/30KHz (min)
Battery capacity: 25A (another battery is purchased additionally. Insert battery is designed for easy dismantling)
Main engine weight: 22 kg Package weight: 38 kg
Main engine size: 48-35-14.5 cm

The frequency and power of each module will be accurately adjusted with professional spectrometers to ensure the lowest error and high accuracy to meet the specific requirements of our professional customers.
