5.8G +900jammer drone Antenna

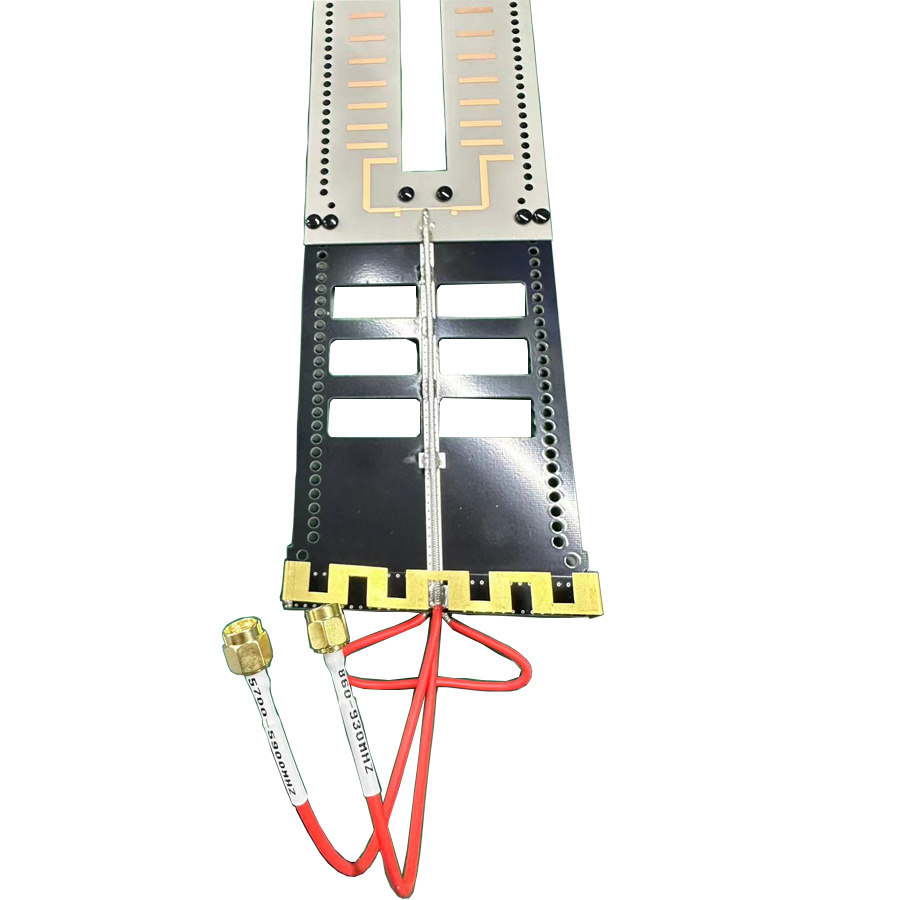

900 5.8G 65° 7/18dBi Single Polarized Board Circuit Board Directional Antenna

编号：

Electrical Specifications

Frequency Range	85-1020/5700-5950MHz
Gain(dBi)	7/18±1dBi

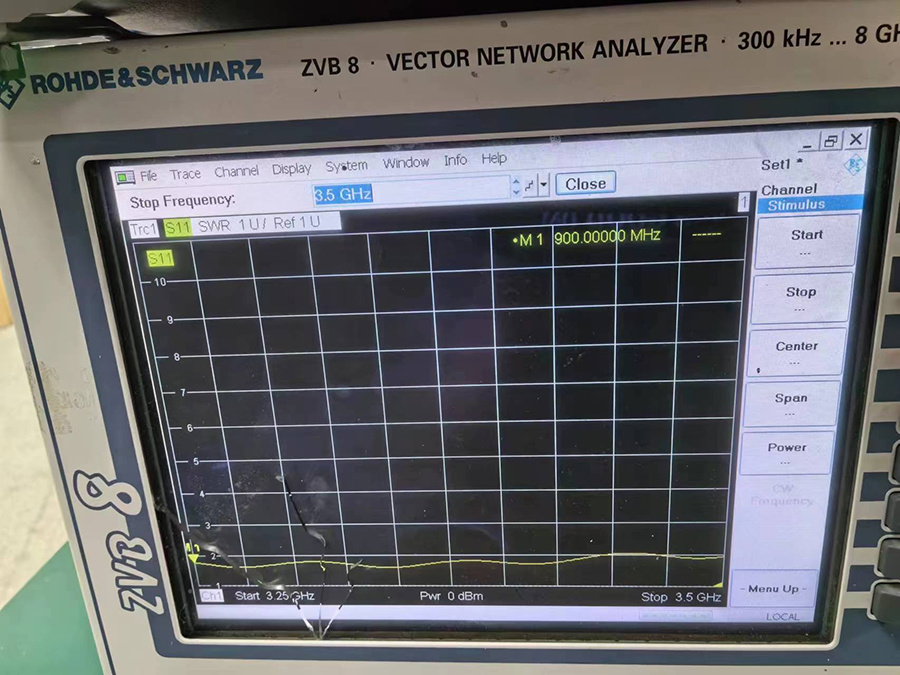

VSWR	≤2
Polarization	perpendicular
Horizontal Beamwidth(0º)	65±10º
Vertical Beamwidth(0º)	55/18±5º
Front-to-back ratio(dB)	≥15
Electrical lower inclination(0º)	0º
Input Impedance（Ω）	50Ω
Maximum input power(W)	50W
Inpur connector type	SMA-J
Lightning Protection	DC Ground

Mechanical Specifications

Dimensionsmm(Height/Width/Depth)	9628315mm
Packing size(mm)	await a decision
Antenna weight(kg)	0.17Kg
Operational Humidity(％)	10- 95
Radome Color	black
Radome material	Polytetrafluoroethylene double-sided copper-clad laminate
Operating temperature(ºC)	-30～70 º
Installution Method	internally installed
